7975-3281 Coleman OEM F110-20 FAN Switch, 90-110F AUTO Limit Switch

  • $ 31.91
    Unit price per
  • Save $ 6.19
Shipping calculated at checkout.


S1-7975-3281 Coleman OEM F110-20 FAN Switch, 90-110F AUTO Limit Switch

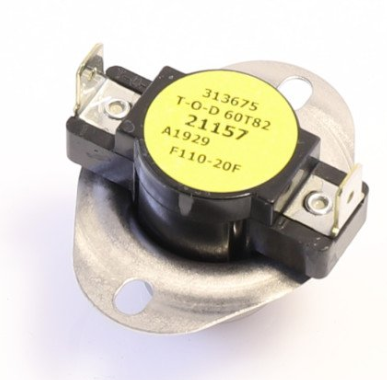

F110-20 FAN Switch, 90-110F AUTO Limit Switch

313675, Size 60T82, Manufacture # 21157, A1831

Replaces 7700-328, 7700-3281, S1-7975-3281, S1-7956-3351, 7660-3281, 7995-3351

1 year warranty on everything we sell

Enhance your furnace’s reliability and safety with the genuine Coleman S1-7975-3281 F110-20F fan limit switch. This automatic switch senses plenum temperature and cycles the blower on at 90 °F and off at 110 °F, protecting heat exchangers from overheating and ensuring optimal airflow. Engineered for direct fit in standard 60T11 limit housings, its rugged metal case and precision bimetal element deliver long-lasting performance in residential, mobile-home, and light-commercial furnaces.


Cross Reference

OEM Part Replaced Equivalent / Notes
7700-328 Original Coleman limit switch
7700-3281 Alternate Coleman service part
S1-7956-3351 Older OEM designation
7660-3281 Coleman residential furnaces
7995-3351 Mobile-home and gas-pack units

Data sourced from HVACpartstore and Coleman OEM cross listings


Technician Notes

  • Always disconnect power at the service panel before servicing the furnace.

  • Access the F110-20F switch through the blower compartment; remove mounting screws and gently extract the old unit from its 60T11 housing.

  • Test continuity across the two fan terminals at room temperature (closed) and above 110 °F (open) using a multimeter.

  • Install the new switch fully into the housing, ensuring the bimetal element faces into the plenum and terminals are snug.

  • After reassembly, run multiple heat cycles to confirm blower-on and blower-off temperatures align with switch ratings.


Compatibility

Application Models / Series
Coleman Gas Furnaces 7600, 7624, 7654, 7680, COAS, COAT
York & Miller Furnaces Any unit using a 60T11 upper housing
Mobile Home & RV Furnaces Coleman-based gas-pack and rooftop units
Light Commercial Blowers Broan-NuTone and Packard inline ventilators with 60T11
