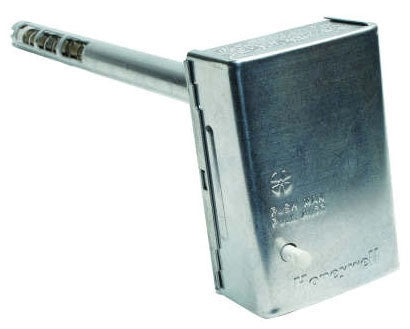

Fan and Limit Controller L4064B2228 Fan & Limit W/5" Insertion Replaces Cnt02532
Fan and Limit Controller L4064B2228 Fan & Limit W/5" Insertion Replaces Cnt02532
Part Description:
- Fan and Limit Controller
- Type 5 Inch Length Element Insertion, Surface/Universal Mounting Bracket
- Temperature Range -40 to 190 Deg F
- Maximum Temperature Rating 190 Deg F (Switch), 350 Deg F (Element), 100 to 250 Deg F (High Limit), 65 to 215 Deg F (Fan ON), 50 to 200 Deg F (Fan OFF), 200 Deg F (High Limit Stop), 125 Deg F (Fan ON Stop), 100 Deg F (Fan OFF Stop)
- Contact Rating 14 Amp at 120 Volt AC/7 Amp at 240 Volt AC Fan (Full Load), 8 Amp at 120 Volt AC/4 Amp at 240 Volt AC Limit (Full Load), 84 Amp at 120 Volt AC/42 Amp at 240 Volt AC Fan (Locked Rotor), 48 Amp at 120 Volt AC/24 Amp at 240 Volt AC Limit (Locked Rotor), 0.25 Amp at 0.25 to 12 Volt AC/2 Amp at 24 Volt AC (Pilot Duty)
- Connection Type Auxiliary Screw Terminal
- Application Forced Warm Air Heating System
- Approval UL, CSA
- Overall Dimension 3 Inch Width x 1-19/32 Inch Depth x 4-9/32 Inch Height
- Differential Temperature Rating 25 Deg F (High Limit)
- Includes Manual and Automatic Fan On/Off Setting, Breakaway Jumper
UPC: 085267000208
Part Number: L4064B2228/U
Features / Benefits
- Three Wiring Terminal Options Available for Easy Installation
- Push-In Receptacles for Stripped Wire
- Female Receptacles for 1/4 Inch Male Flag Connectors
- Auxiliary Screw Terminals
- Field Adjustable Fan and High Limit Settings
- L4064B and R Models have a Manual Fan Switch that Overrides the Fan Control to Keep the Fan Running Continuously
- Tradeline Models with Mounting Adapters for Easy Installation and Strain Relief Bushings to Protect Wiring from Field Abuse
Specifications
| MANUFACTURER | HONEYWELL RESIDENTIAL |
| MANUFACTURER PART NUMBER | L4064B2228/U |
| METROPAC INTERNAL PART NUMBER | 2188 |
| ADDITIONAL INFORMATION | Overall Dimension 3 Inch Width x 1-19/32 Inch Depth x 4-9/32 Inch Height; Differential Temperature Rating 25 Deg F (High Limit); Includes Manual and Automatic Fan On/Off Setting, Breakaway Jumper |
| PRODUCT NAME | Fan and Limit Controller |
| UPC CODE | 085267000208 |
