S1-024-27667-000 Coleman 5.5" Blower Motor 3/4HP 240V 4-speed

Coleman blower motor often found in the 3500-7901 blower assemblies. Uses a 20/370 oval run cap (part number POCF20A, not included).

Coleman model furnaces 3400, 3400A 3500

Motor specs are:
1HP, 208-230 Vac, Single Phase, 1075 RPM, 5.1 Amps, 48Y Nema Frame Size, Open Air, Ball Bearing, Resilient, 1/2" x 2 1/2" Shaft, Reversible Rotation, Permanent Split Capacitor Motor

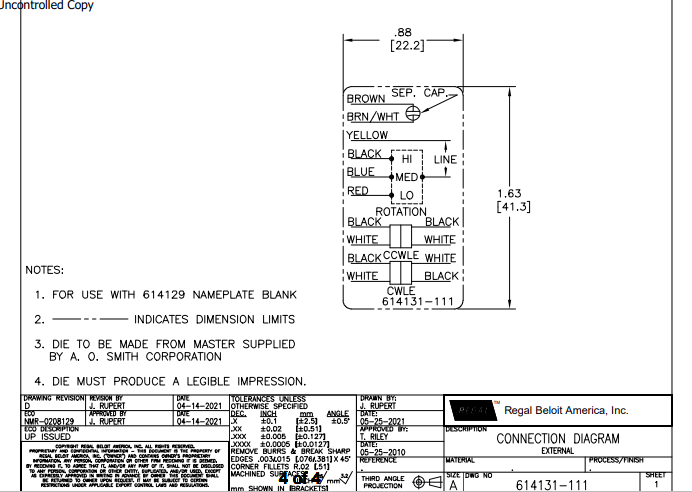

Wiring: Red - low, yellow - med low, blue - med high, black - high, orange - line/run cap, brown - run cap, green - ground.

Motor weighs 21 pounds!! Also known as part number S1-02427667000 and Genteq F48L05A48. 02427667000 Century motor BD1106

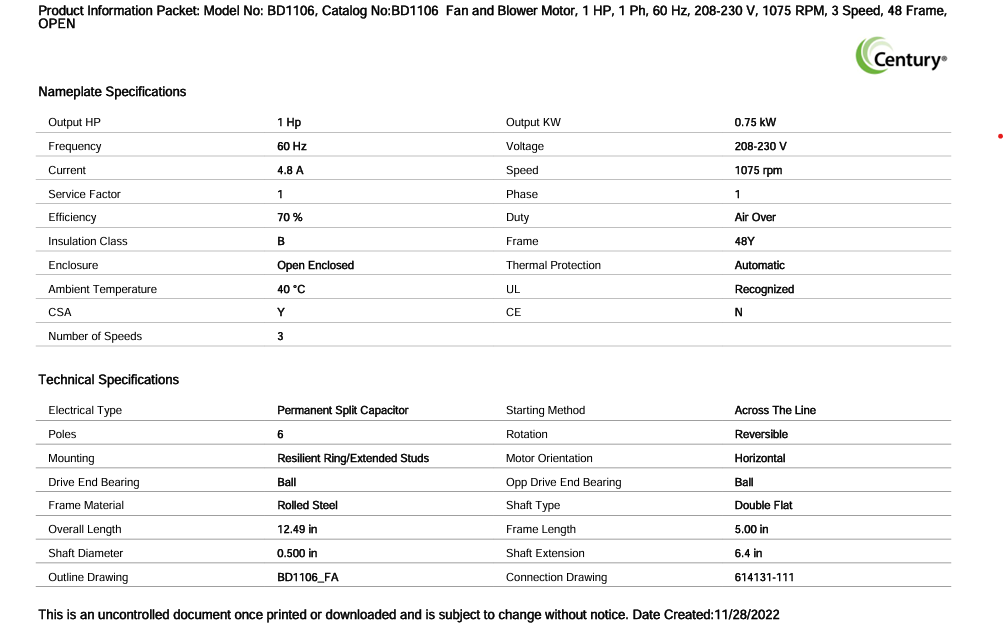

The Century BD1106 Fan and Blower Motor is an electrical type PSC motor with a single phase and a voltage of 208-230. It features an auto overload protector, a 48Y frame, and an OAO enclosure made of rolled steel. The motor has a horsepower of 1, reversible rotation, and operates at 1075 RPM with 3 speeds.

The BD1106 motor has a 5-5/8″ diameter and is a direct drive fan and blower motor with 1 HP. It includes features such as auto protector, continuous air flow, high efficiency, open construction, multiple mounting options, and a permanent split capacitor. The motor has a 1/2″ diameter flatted shaft, 22″ leads, and a 48 frame. It operates at 60 Hz, 1 HP, 1075 RPM, and 208-230 volts with 5.1 amps. The motor requires a 20mfd-370V capacitor (not included) and has ball bearings, resilient mounting rings, and a reversing plug. It can operate at an ambient temperature of 40 degrees Celsius.

The motor is cross-referenced with various model numbers including 323P183, 323P572, F48A86A38, F48C62A45, F48F85A45, F48L05A48, F48L13A50, F48M12B87, F48SQ6L7, F48SR6L7, F48SR6V21, F48SS6V2, F48SU6V16B1, F48SU6V4, HC44SE209, HC45MF232, HC45MF232B, HC45MS234, 8907, D711, 3596, X023, 29705, C726832P02, 586, F48P31A01, and more.

Additional cross-reference data includes Emerson 8907, Nidec 8907, US Motors 8907, Marathon X023, AO Smith F48SU6V16B1, F48SU6V4, F48SQ6L7, 323P183, F48L05A48, F48A86A38, F48SR6V21, F48SS6V2, F48M12B87, F48F85A45, F48SR6L7, 323P798, F48L13A50, 323P572, 586, F48P31A01, F48C62A45, Carrier HC44SE209, HC45MF232, HC45MS234, HC52SE208, HC45MF232B, Century D711, F48P31A01, and more.-Additional Replacement Information-electrical type : psc | phase : single | voltage : 208-230 | overload protector : auto | frame : 48y | enclosure : oao | material : rolled steel | hp : 1 | rotation : reversible | rpm : 1075 | number speeds : 3-bd1106 5-5/8 ” diameter direct drive fan & amp ; blower motor 1 hp features : auto protector , continuous air , high efficiency , open construction , multiple mount , reversible , permanent split capacitor , 1/2 ” dia .-flatted shaft , 22 ” leads ( minimum ) , 48 frmae ( 5-5/8 ” dia . ) , 60 hz 1 hp 1075 rpm 3 speed 208-230 volt 5.1 amps 20mfd-370v capacitor(not included ) ball bearings resilient mounting rings included reversing plug 40 degrees celsius ambient 1/2 ” double flat shaft , 2-1/2 ” rings cross references : 323p183 323p572 323p798 f48a86a38 f48c62a45 f48f85a45 f48l05a48 f48l13a50 f48m12b87 f48sq6l7 f48sr6l7 f48sr6v21 f48ss6v2 f48su6v16b1 f48su6v4 hc44se209 hc45mf232 hc45mf232b hc45ms234 8907 d711 3596 x023 29705 c726832p02 586 f48p31a01 1 hp   1075 rpm , 5.1 amps , 208-230 volts 3-speed service factor = 1.0 includes 20 mfd 370v capacitor 5.6 ” diameter , motor body length 5 1/4 ” ” 1/2 ” x 6.44 ” shaft , rotation reversible 22 ” leads extended bolts shaft end ball bearings . year warranty . permanent split capacitor motor . 2 1/4 ” resilient rings . belly band stud mount . automatic overload protection . continuous duty ; easy rotation change ; enclosure ; continuous duty ; class b insulation ; residential application ; 40c ambient temperature ; motors work ” belly band applications ” meaning motor mounted strap / clamp body motor mounts motor “-bolts . belly band brackets available : torsion flex bracket ( 3-prong ) # 2mey7 , torsion flex bracket ( 4-prong ) # fm554 , welded 3-ring bracket # 2mev4.dayton 48y526 : 323p183 , 323p572 , 5kcp39pgc841 , c726832p02 , f48a86a38 , f48l05a48 , f48l13a50 , f48ss6v2 , f48su6v16b1 , hc45ms234 , 29705 , 323p798 , 586 , 5kcp39sgl853 , 8907 , d711 , f48c62a45 , f48f85a45 , f48m12b87 , f48p31a01 , f48sq6l7 , f48su6v4 , hc44se209 , hc45mf232 , hc45mf232b , hc52se208 , he3t036 , he3t7036 , s88-437 , s88-653 , 3596 , d2704 , f48sr6l7 , f48sr6v21 , fd1106 , x023 , 8907 , bd1106 , bd1106 , bd1106 , bd1106 , bd1106 , bd1106 bd1106 5-5/8 . diameter direct drive fan blower motor 1 hp
Additional Cross Reference Data-EMERSON 8907 NIDEC 8907 US MOTORS 8907 MARATHON X023 AO SMITH F48SU6V16B1 , F48SU6V4 , F48SQ6L7 , 323P183 , F48L05A48 , F48A86A38 , F48SR6V21 , F48SS6V2 , F48M12B87 , F48F85A45 , F48SR6L7 , 323P798 , F48L13A50 , 323P572 , 586 , F48P31A01 , F48C62A45 BASE 586 CARRIER HC44SE209 , HC45MF232 , HC45MS234 , HC52SE208 , HC45MF232B CENTURY D711 , F48P31A01 EC MAX 46001 FASCO D-711 , D711 , D2704 GENERAL ELECTRIC 5KCP39SGL853 , 3596 GENTEQ 3596 GLOBAL IND WBB185895 JS S88-437 MARS 3596 PACKARD 70586 ROTOM R6-R42023 SH A1-79 TOPTECH TT-E10-3SP2 TRANE 29705 , C726832P02 UNIVERSAL U-586 , HE3T036 UPG FHM3595 WAGNER WG840596
