626614 Nordyne Limit Switch L180-40F
626614 Nordyne Limit Switch L180-40F
Product Overview

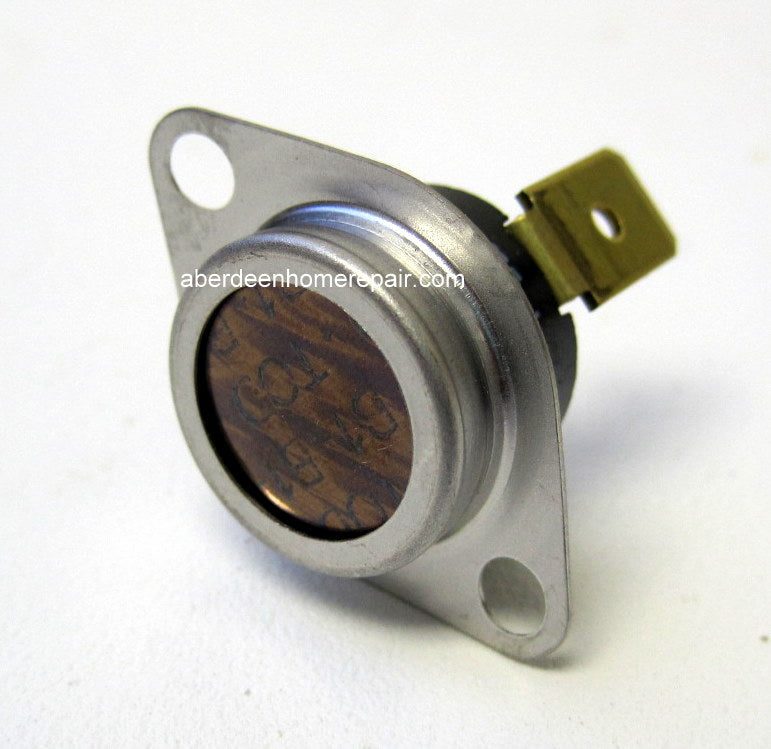

626614 is an OEM Nordyne automatic-reset temperature-limit switch that opens at 180 °F and closes again at 140 °F, providing reliable overheat protection in gas furnaces and air handlers. It features a 1/2″ sensing bulb, snap-in chassis-mount clip, and two 1/4″ male quick-connect spade terminals.
Technical Specifications
| Specification | Detail |
|---|---|
| Trip Temperature | 180 °F (opens) |
| Reset Temperature | 140 °F (closes) |
| Temperature Differential | 40 °F |
| Bulb Diameter | 1/2″ |
| Bulb Length | 3″ |
| Switch Type | SPST normally closed, automatic reset |
| Terminal Connections | Two 1/4″ male quick-connect spades |
| Mounting | Snap-in chassis-mount clip |
| Housing Material | Gray thermoplastic |
| Net Weight | 0.02 lb |
| Operating Ambient Range | –40 °F to 185 °F |
Cross-Reference Part Numbers
| OEM Part Number | Replaces |
|---|---|
| 626614 | L180-40F, 626614 |
Compatibility
-
Nordyne, Nordyne Miller, Intertherm, Amana, Ducane, and Concord gas furnaces originally equipped with an auto-reset limit control at 180/140 °F
-
Private-label units using the L180-40F specification
-
Always verify your equipment’s data-plate temperature limits and control-board layout before ordering
Technician Notes
-
De-energize power and shut off gas supply before servicing.
-
Remove the furnace access panel to expose the existing limit switch.
-
Photograph or label each quick-connect terminal to preserve wiring orientation.
-
Depress the mounting clip to release the old switch and pull off spade connectors.
-
Snap the new 626614 switch into place and reconnect spade terminals onto its lugs.
-
Restore power and run a heat call; confirm blower de-energizes near 180 °F and re-energizes near 140 °F.
-
Use an infrared thermometer or surface-probe sensor to verify accurate trip/reset points and inspect for airflow obstructions that could cause false trips.
140-180F M/R Limit Switch
