| Model Number |
HRM054U1LP6 |
| Type |
Hermetic Scroll Compressor |
| Cooling Capacity |
54,000 BTU (โ 4.5 Tons) |
| Voltage |
208โ230V, Single Phase, 60Hz |
| Refrigerant |
R-22 (also compatible with R-407C) |
| Motor Protection |
Internal overload protector |
| Oil Type |
Alkylbenzene (160ABM) |
| Oil Charge |
1.57 Liters |
| LRA (Locked Rotor Amps) |
150 A |
| MCC (Maximum Continuous Current) |
39 A |
| RLA (Rated Load Amps) |
25 A |
| Start Capacitor |
70 ยตF |
| Run Capacitor |
161โ193 ยตF |
| Compressor Speed |
3500 RPM |
| Connection Type |
Brazed |
| Discharge Pipe Size |
1/2 inch |
| Dimensions |
Diameter: 184 mm, Length: 239 mm |
| Weight |
Net: 40.95 kg / Gross: 44.01 kg |
| Max Pressure (High Side) |
31.1 bar |
| Max Pressure (Low Side) |
26.2 bar |
| Application Segment |
Air Conditioning |

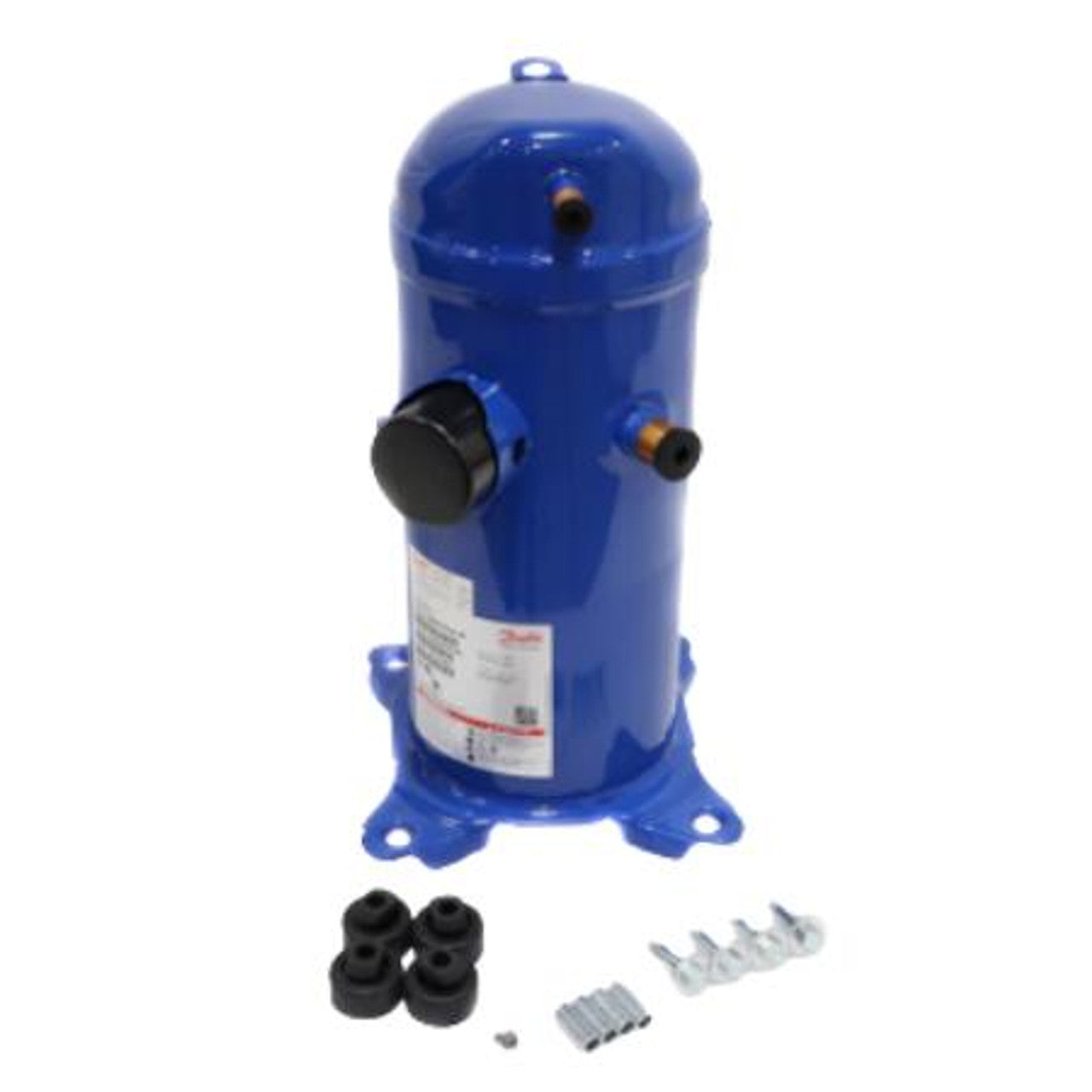

| Mounting Kit |
Includes grommets and sleeves |
