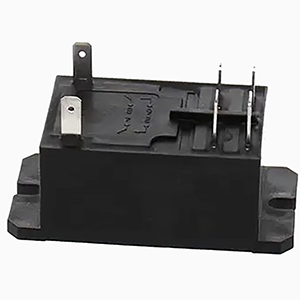

1025375R Nordyne 24vdc Relay DPST
1025375R Nordyne 24vdc Relay DPST
Product Description
The 1025375R is a genuine Nordyne 24 VDC double-pole, single-throw (DPST) relay designed for reliable switching in residential and light-commercial HVAC applications. Its compact footprint and gasketted enclosure make it ideal for furnace control modules, air handler circuits, and rooftop packaged units.
Key features:
-
Coil voltage: 24 VDC
-
Contact configuration: DPST (two independent circuits)
-
Contact rating: 10 A at 250 VAC, 30 A inrush
-
Insulated, gasketted housing for dust and moisture resistance
-
Mounting: panel-mount with standard 1⁄4″ quick-connect terminals
Technical Specifications
| Specification | Detail |
|---|---|
| Coil Voltage | 24 VDC |
| Contact Rating | 10 A @ 250 VAC (resistive) |
| Contact Material | Silver alloy |
| Coil Draw | 50 mA |
| Terminal Type | 1⁄4″ male quick-connects |
| Dielectric Strength | 1500 VAC coil-contact |
| Operating Temperature | ‑40 °F to 158 °F (-40 °C to 70 °C) |
| Mounting | Panel-mount with clip/bracket |
Compatibility
This relay is a direct OEM replacement for Nordyne part 1025375R and fits a broad range of Nordyne, Coleman, Comfortmaker, Amana, and Ducane systems that utilize a 24 V control relay.
-
Nordyne / Coleman / Comfortmaker
-
Series 63M, 63P, 42MV, 42MJ
-
Packaged units: CPN, CNB, CKL lines
-
-
Amana / Ducane
-
Series AFG, FGL, FG4, GG4
-
Packaged models: RG4, SH4 rooftop units
-
-
Goodman / Intertherm
-
GMH95, GMH9, DMH9 series
-
