903110B Nordyne Hot Surface Ignitor Kit 120V, MG1E
903110B Nordyne Hot Surface Ignitor Kit 120V, MG1E
903110B Nordyne Hot Surface Ignitor Kit 120V, MG1E

903110B Nordyne Hot Surface Ignitor Kit 120V, MG1E

  • Save $ 10.78
Shipping calculated at checkout.

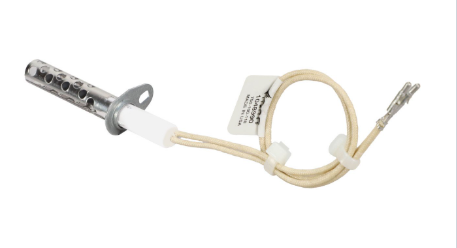

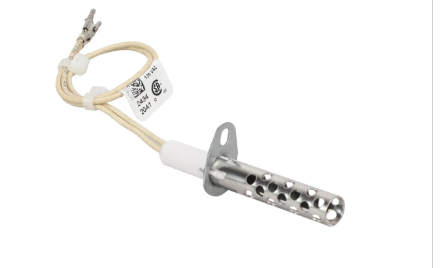

903110B Nordyne Hot Surface Ignitor Kit with Shield for older Nordyne Equipment

Product Overview

903110B is an OEM hot surface ignitor kit featuring a high-reliability silicon nitride element. It operates at 120 VAC and is engineered for MG1E series gas furnaces, providing rapid and consistent ignition in residential and light commercial heating systems.


Technical Specifications

Specification Detail
Element material Silicon nitride
Voltage 120 VAC
Typical current 2.5 A (consult OEM manual for exact)
Lead length 6 in high-temperature insulated wires

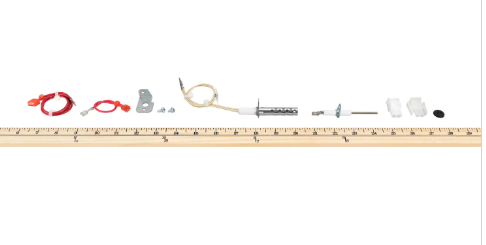

Mounting kit Insulator bracket and mounting hardware
Origin United States


Cross-Reference Part Numbers

OEM Part Number Also Known As / Replaces

  • Choose 903110A if you specifically need a replacement kit that includes the plug/connector for a plug‑and‑play swap.

  • Choose 903110B if you need the 120V MG1E style ignitor with a silicon‑nitride element (the listing highlights the element material and spec).


Compatibility

  • Nordyne MG1E series gas furnaces: MG1E130, MG1E150, MG1E180, MG1E200, MG1E250, MG1E280

  • Emerson/Intertherm units built on the 50X57 MG1E platform

  • Private-label and OEM furnaces requiring a 120 VAC silicon nitride ignitor

Always verify model and voltage requirements against the furnace’s data plate before ordering.


Technician Notes

  1. Disconnect all electrical power before servicing.

  2. Label or photograph the old ignitor’s wiring and bracket orientation.

  3. Remove the existing ignitor; clean the mounting surface of debris.

  4. Position the new silicon nitride element in the insulator bracket—avoid bending or twisting the element.

  5. Secure mounting hardware evenly; do not over-torque.

  6. Route high-temperature leads clear of the combustion path.

  7. Restore power and initiate a heat call; observe glow timing and flame rollout to confirm proper operation.

  8. If ignition faults occur, reference control board LED codes and verify flame sensor operation.


Additional Resources

  • OEM installation manual & wiring diagram (PDF)

  • Printable cross-reference cheat sheet for ignitor kits

Nordyne ignitor for hot surface ignition (HSI) systems. This 120V nitride igniter now replaces the old silicone carbide ignitor. Nitride is designed to withstand more abuse and last longer. Installs the same as your old igniter.

Ignitor glows to light flame on burner. It's also a flame sensor and will send signal to control board to shut down furnace if no flame is detected.
Replaces 9031100, 903110, 632313 & 632313c.
